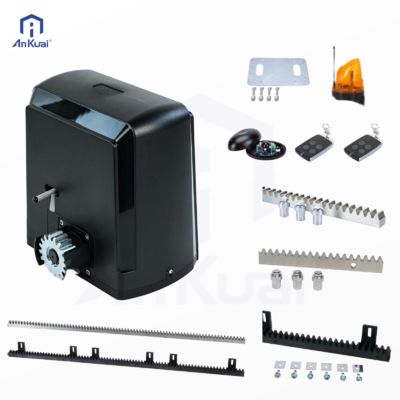

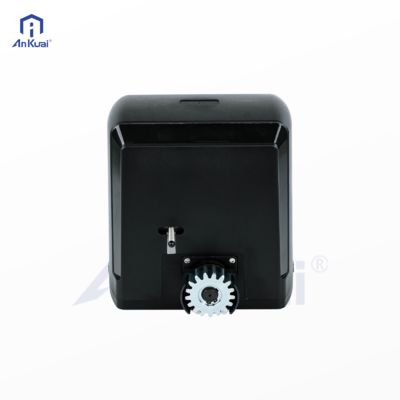

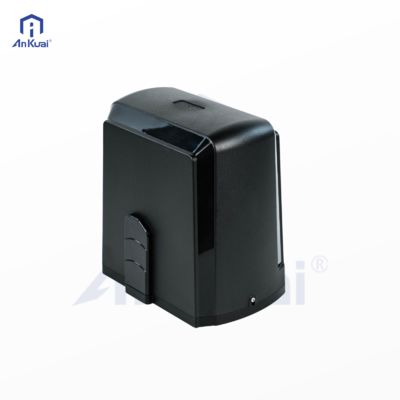

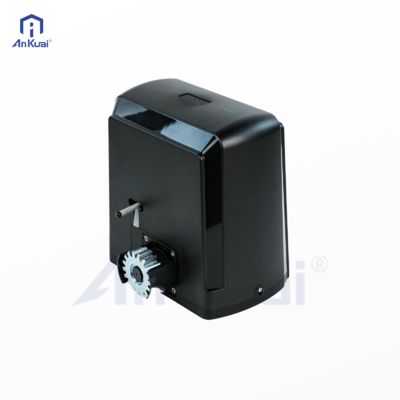

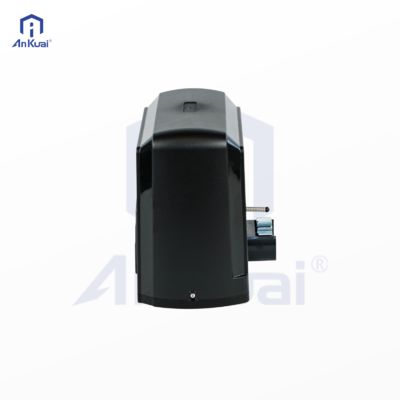

Smart AK800DC Automatic Door Opener for Commercial Spaces: Remote, WiFi App & Infrared Sensing Functions

ブランド名:	Ankuai Intelligent Tech Inc.
モデル番号:	AK800DC
MOQ:	1セット
価格:	negotiable
パッケージの詳細:	普通のパッケージで,カートン付き
支払条件:	T/T

製品の説明

起源の場所:

ISO9001, CE Certificate

キャビネットの寸法:

291*246*299mm

モーター:

DCモーター

モーターパワー:

開始および閉鎖時:

12〜18m/min

負荷容量:

最大800kg

キャビネットの色:

作業温度:

-30°C〜80°C

リモートコントロール:

30m~50m

ブームタイプ:

望遠鏡、ブーム、フロードなど。

人工損傷を除いて1年のGurantee

サンプルの3勤務日

供給の能力:

1か月あたり30000セット

ハイライト:

Smart AK800DC automatic door opener

commercial door opener with WiFi app

automatic door opener with infrared sensing

製品の説明

Smart AK800DC Automatic Door Opener for Commercial Spaces

Remote, WiFi App & Infrared Sensing Functions

Product Specifications

Application	Sliding Gate
Place of Origin	Guangdong, China
Brand Name	ANKUAI
Product name	Opener Gate
Product model	AK800DC
Size	291246299mm
Opening and closing times	12-18m/min
Voltage	AC220V
Motor	DC Motor
Motor Power	200W
IP Rating	IP54
Remote control distance	30m~50m

Product Features

Characteristics

Soft start and slow stop
Automatic reverses after encountering obstacles
Motor output force, stall force, slow stop distance are adjustable
Automatic close with waiting time adjustable
Partial opening for pedestrian passes

Electrical Features

Exclusive Adaptability: Exclusively designed and manufactured for use with a single sliding gate, and only supports usage scenarios specified in the documentation
Compatibility with Optional Safety Accessories: Can be equipped with infrared photocells for installation according to actual needs
Emergency Operation Support: Equipped with a manual opening operation method for emergencies

Safety Mechanisms

Electrical Safety Provisions: Input voltage must match gate opener's supply voltage
Safety Controls for Installation and Maintenance: Power plug must be disconnected before work
Usage Scenario and Operational Safety Restrictions: Installing in explosive atmospheres or flood-prone areas is forbidden
After-sales and Maintenance Safety Specifications: Only original parts shall be used for maintenance
Warranty and Environmental Protection Tips: Packaging materials must be disposed properly
Documentation Retention Requirement: Instructions shall be saved for future reference

Technical Specifications

Voltage	DC24V
Drive	DC Motor
Motor Power Consumption	200W
Working Temperature	-30°C ~80°C
Humidity	≤90%
Remote Control Distance	≤30m
IP Rating	IP54

Key Functions

Automated Sliding Operation: Enables hands-free, smooth sliding of single gates
Emergency Manual Override: Allows manual operation during power outages
Obstruction Detection Compatibility: Works with infrared photocells to sense obstacles
Safe Power Management: Supports connection to RCD-protected outlets
Remote Control Integration: Pairs with dedicated remotes for convenient operation
Track Deviation Prevention: Compatible with gate end catches and stops

Applications

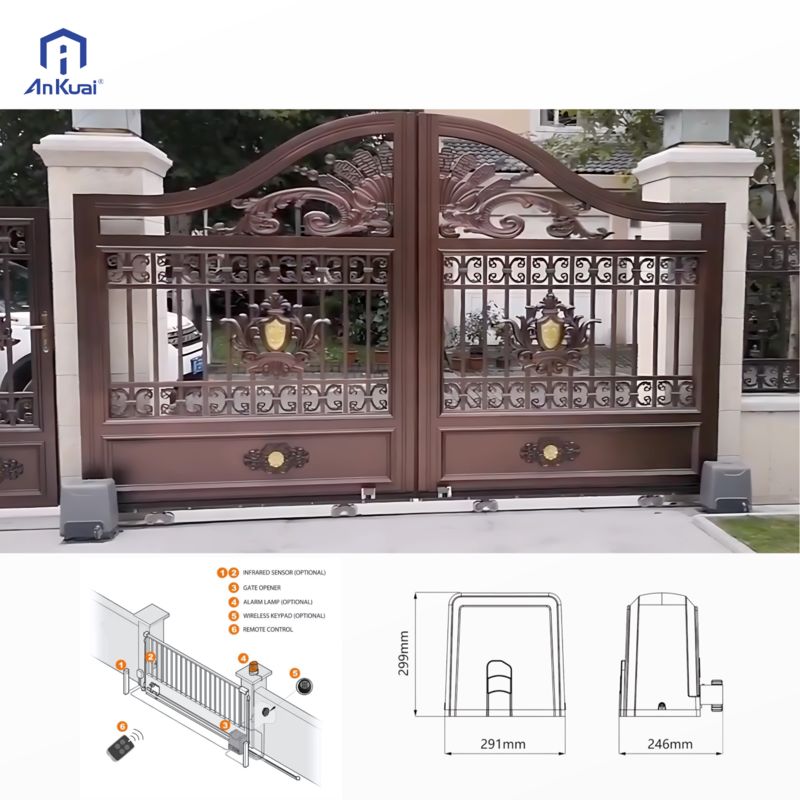

Residential Properties: Ideal for driveways of houses, villas, or townhomes
Commercial Premises: Used in parking lots, retail store back entrances
Industrial Facilities: Suitable for warehouse loading docks, factory perimeter gates
Institutional Areas: Applied in schools, hospitals, or government campus gates
Recreational Sites: Installed at community parks, sports complexes

Frequently Asked Questions

What is your company's strength in this field?

We are one of the leaders in this field with ISO certification, 50,000+ square meter facility, 130+ national patents, strong R&D team with 30+ professionals, and over 300 assembly workers. We have 76 distributors in China and 50+ worldwide.

How do you guarantee product quality?

We have ISO9001 and CE certifications and are committed to providing the best product quality possible to our customers.

Do you provide OEM service?

Yes, we offer custom barrier gates according to your needs, including logo printing and custom packaging.

What is the lead time for standard items?

1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500 sets: 15 working days. Custom items may require 3-10 additional days.

What warranty and after-sales service do you provide?

We offer 1-year quality guarantee with professional engineering support and 24-hour response time for inquiries.
