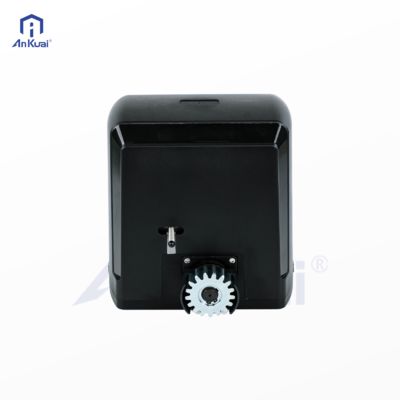

AK800DC Smart Automatic Door Opener (Commercial Use): Remote, WiFi App Access & Infrared Safety Sensor

ブランド名:	Ankuai Intelligent Tech Inc.
モデル番号:	AK800DC
MOQ:	1セット
価格:	negotiable
パッケージの詳細:	普通のパッケージで,カートン付き
支払条件:	T/T

製品の説明

起源の場所:

ISO9001, CE Certificate

キャビネットの寸法:

291*246*299mm

モーター:

DCモーター

モーターパワー:

開始および閉鎖時:

12〜18m/min

負荷容量:

最大800kg

キャビネットの色:

作業温度:

-30°C〜80°C

リモートコントロール:

30m~50m

ブームタイプ:

望遠鏡、ブーム、フロードなど。

人工損傷を除いて1年のGurantee

サンプルの3勤務日

供給の能力:

1か月あたり30000セット

ハイライト:

commercial automatic door opener

smart door opener with WiFi

automatic door opener with sensor

製品の説明

AK800DC Smart Automatic Door Opener (Commercial Use): Remote, WiFi App Access & Infrared Safety Sensor

Product Specifications

Application	Sliding Gate
Place of Origin	Guangdong, China
Brand Name	ANKUAI
Product Name	Opener Gate
Product Model	AK800DC
Size	291246299mm
Opening and Closing Times	12-18m/min
Voltage	AC220V
Motor	DC Motor
Motor Power	200W
IP Rating	IP54
Remote Control Distance	30m~50m

Product Features

Characteristics

Soft start and slow stop.
Automatic reverses after encountering obstacles.
Motor output force, stall force, slow stop distance are adjustable.
Automatic close with waiting time adjustable.
Partial opening for pedestrian passes.

Electrical Features

Exclusive Adaptability: Exclusively designed and manufactured for use with a single sliding gate, and only supports usage scenarios specified in the documentation, ensuring precise alignment between product functions and usage requirements.
Compatibility with Optional Safety Accessories: Can be equipped with infrared photocells for installation according to actual needs to detect obstructions, further expanding safety protection functions and adapting to scenarios with different safety requirements.
Emergency Operation Support: Equipped with a manual opening operation method. In case of sudden emergencies, the gate can be opened and closed normally through manual operation, enhancing operational flexibility and emergency support capabilities.

Safety Mechanisms

Electrical Safety Protection
- Clearly requires that the input voltage must match the supply voltage of the gate opener to prevent equipment failure or safety accidents caused by voltage mismatch.
- Mandatorily stipulates that the power cable must be connected to a weatherproof power outlet with Residual Current Device (RCD) protection, which is installed by a qualified electrician.
Safety Control during Installation and Maintenance
- The power plug must be disconnected before installation and maintenance.
- Before installing the motor, a Gate End Catch and a Gate Stop must be mounted at each end of the rail to prevent the gate from travelling off the track.
Restrictions on Usage Scenarios and Operational Safety
- Installation in explosive atmospheres or areas with flood risks is prohibited.
- Control devices must be installed away from the moving range of the gate.
Safety Standards for After-sales and Maintenance
- Maintenance and repair operations should only use original parts.
- Without explicit authorization from the company, modifying automation components is not allowed.
Warranty and Environmental Care Tips
- Any activity not expressly permitted in these instructions is prohibited and will void the warranty.
- All packaging materials must be disposed of according to existing guidelines.

Technical Specifications

Voltage	DC24V
Drive	DC Motor
Motor Power Consumption	200W
Working Temperature	-30°C ~80°C
Humidity	≤90%
Remote Control Distance	≤30m
IP Rating	IP54

Key Functions

Automated Sliding Operation: Enables hands-free, smooth sliding of single gates with stable motor performance, reducing manual effort.
Emergency Manual Override: Allows manual gate opening/closing during power outages or system malfunctions for uninterrupted access.

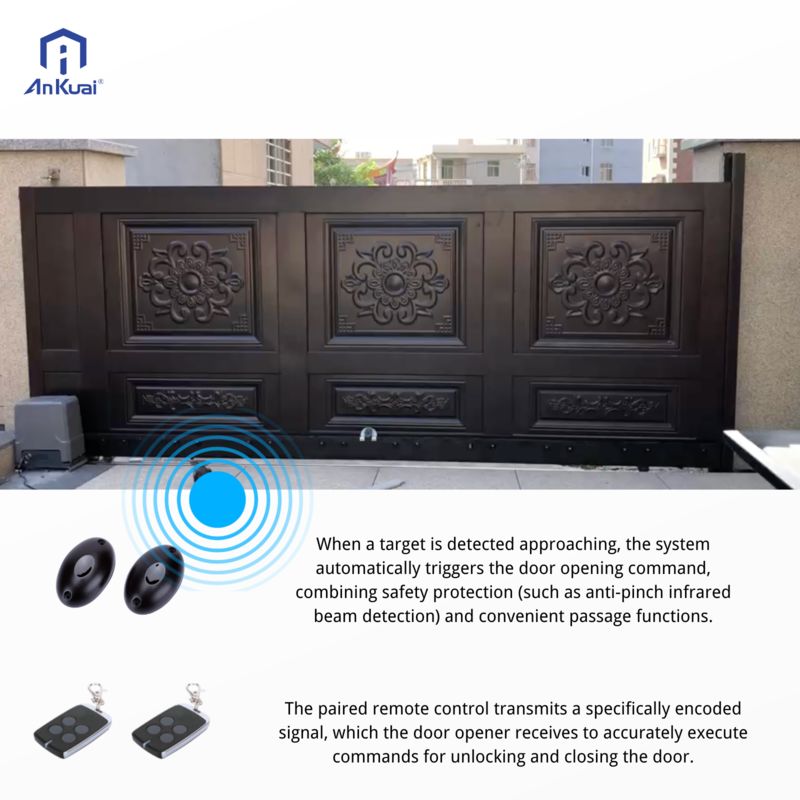

Obstruction Detection Compatibility: Works with infrared photocells to sense obstacles (e.g., people, objects) and stop/reverse gate movement, preventing collisions.
Safe Power Management: Supports connection to RCD-protected outlets; auto-powers down during maintenance to avoid electrical hazards.
Remote Control Integration: Pairs with dedicated remotes for convenient operation from a distance; prevents unauthorized access via child-safe design.
Track Deviation Prevention: Compatible with gate end catches and stops to keep the gate on-track, avoiding derailment and equipment damage.

Applications

Residential Properties: Ideal for driveways of houses, villas, or townhomes--provides secure, convenient access control for homeowners.
Commercial Premises: Used in parking lots, retail store back entrances, or office compound gates to manage vehicle/pedestrian flow efficiently.
Industrial Facilities: Suitable for warehouse loading docks, factory perimeter gates, or logistics yards--handles heavy-duty sliding gates for secure asset protection.
Institutional Areas: Applied in schools, hospitals, or government campus gates to regulate entry/exit and ensure safety for staff, students, or visitors.
Recreational Sites: Installed at community parks, sports complexes, or resort entrances--offers easy access while maintaining site security.

Frequently Asked Questions

What is your company's strength in this field?

We are one of the leaders in this field with ISO certification, 50,000+ square meter facility, 130+ national patents, strong R&D team with 30+ professionals, and over 300 assembly workers. We have 76 distributors in China and 50+ worldwide.

How do you guarantee product quality?

We have ISO9001 and CE certifications and are committed to providing the best product quality possible to our customers.

Do you provide OEM service?

Yes, we offer custom barrier gates according to your needs, including logo printing and custom packaging.

What is the lead time for standard items?

1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500 sets: 15 working days. Custom items may require 3-10 additional days.

What warranty and after-sales service do you provide?

We offer 1-year quality guarantee with professional engineering support and 24-hour response time for inquiries.
