三脚の回転木戸のゲート
>

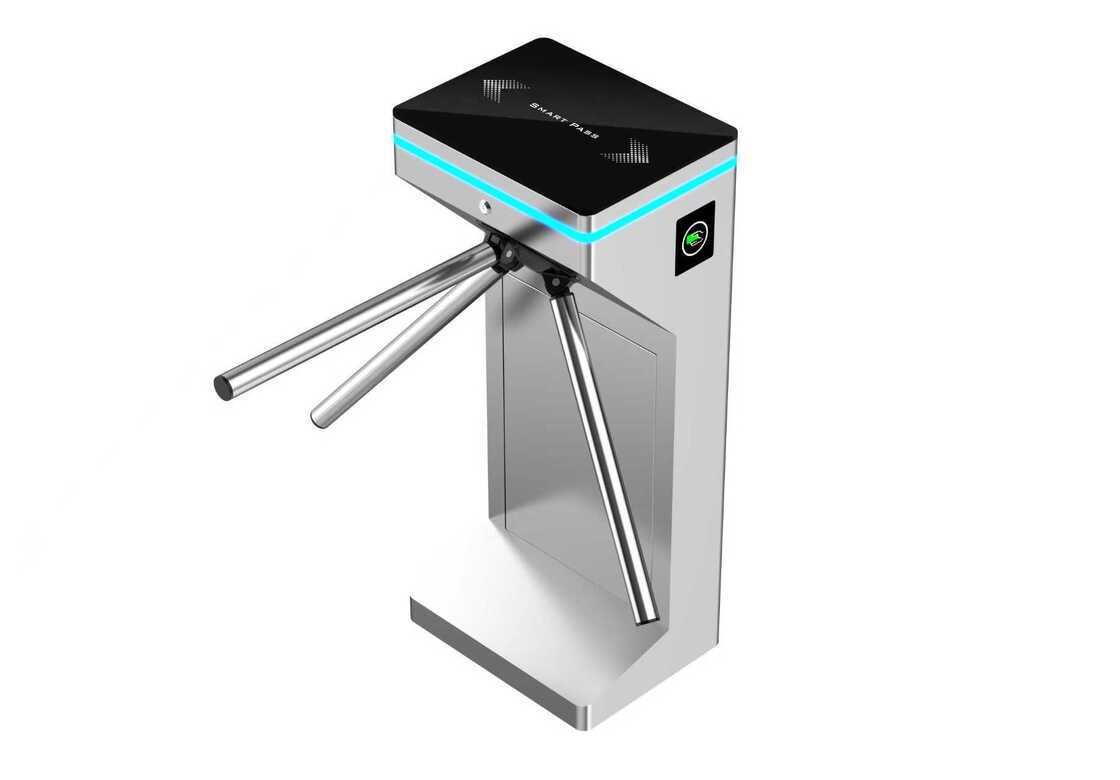

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile

ブランド名: AnKuai
モデル番号: AKT301
MOQ: 1台
価格: USD+236+Unit
パッケージの詳細: カートン + 木枠/箱
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
詳細情報
起源の場所:
中国
証明:
ISO,CE
モデル:
AKT301
材料:
304 ステンレス鋼
アクセスコントールタイプ:
RFIDカード、QRコード、指紋認証、顔認識など...
回転の仕方:
単方向、双方向(オプション)
回転式改札口機能:
挟み込み防止、衝突回避、共連れ防止
モーター:
24v DCブラシモーター
MCBF:
500万サイクル
スピード:
1S
通信インターフェース:
RS-232、RS485、TCP/IP
動作方向:
2ウェイ
供給の能力:
1 か月あたりの 30000 単位
ハイライト:

RS485 stainless steel tripod turnstile

,

automatic tripod turnstile gate

,

security access control turnstile

製品の説明



Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile

Introduction

Tripod turnstiles are a kind of high-efficiency, safe and practical access control equipment, widely used in various public places and private areas to manage pedestrian access orderly. With its compact structure, stable performance and flexible application, it has become one of the most popular access control solutions in the market, effectively balancing security management and passing efficiency.



Specification



Turnstile type

Tripod turnstile

Cabinet material

304 stainless steel

Pole material

304 stainless steel

Dimension

150 * 260 * 980 mm ( L* W* H)

Passage width

550mm

Direction

Single / Bidirectional

Passage speed

30persons/min

MCBF

5 million cycles

Voltage

AC220V±10%(input)/AC24±10%(control)

Working environment

-30 ℃ -70 ℃

LED indicator

Yes

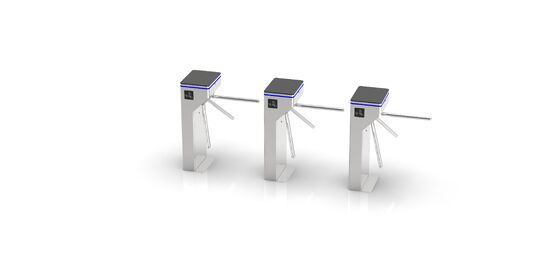

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile 0

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile 1

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile 2

Product comprehensive performance:

√ The anti-foam water height is higher than 250mm.

√ With a fire linkage interface, when the fire signal is triggered, the rod will automatically drop and quickly guide the evacuation of personnel.

√ After brushing the valid card, the pole rotates forward at a smaller Angle to prompt the pedestrian to pass. Once the pedestrian touches the pole, it starts to rotate forward to the horizontal position.

√ With the anti-clip function, it can effectively avoid pushing down vulnerable groups such as the elderly and children, prevent personnel injury, and ensure the safety of use.

√ When the door is not received, the movement will be locked after the rod is hit by an external force. √ Anti-collision capability.

√ The shape is simple, beautiful, generous, stable and durable, subverting the bloated impression of low-end gate machines.

√ Use LED to indicate traffic direction.

√ Only authorized persons may pass, and unauthorized persons may not pass.

√ Support a variety of configurations in the direction of traffic (controlled, free, prohibited).

Security Access Control System RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile 3



Core Features & Advantages

Our tripod turnstiles integrate multiple core advantages, making them suitable for both indoor and outdoor use, and meeting the diverse needs of different scenarios:
  • Superior Security Performance: Equipped with anti-tailgating, anti-climbing and anti-drilling designs, it can effectively prevent illegal passage, unauthorized entry and exit, and ensure the safety of the controlled area. The mechanical structure is firm and anti-impact, which can withstand certain external forces without easy damage.
  • Compact & Space-Saving: With a small footprint and compact structure, it is especially suitable for narrow passages, such as community gates, office building entrances and subway exits, without occupying too much space while ensuring effective access control.
  • Stable & Low Maintenance: Adopting high-quality hardware components and mature mechanical transmission technology, the equipment operates stably with a low failure rate, long service life, and low later maintenance cost, reducing the trouble of daily operation and maintenance.
  • Effortless Operation & Fast Passage: The operation is simple and humanized, and pedestrians can pass quickly by swiping cards, scanning codes, fingerprint recognition or other verification methods, ensuring smooth and orderly pedestrian flow even in crowded peak periods.
  • Strong Compatibility & Flexibility: It can be easily connected with access control systems, attendance systems, ticketing systems and pedestrian flow statistics systems, realizing intelligent management. At the same time, it supports both indoor and outdoor installation, and the outdoor version is equipped with waterproof, dustproof, rust-resistant and UV-resistant functions, adapting to various harsh outdoor environments (protection grade up to IP54/IP65).
  • Low Noise & Durable: The equipment operates with low noise, which will not affect the surrounding environment, and is suitable for long-time continuous operation, meeting the needs of 24-hour access control management in public places.

Outdoor & Indoor Application Scenarios

With its strong adaptability, our tripod turnstiles are widely used in various scenarios, covering both indoor and outdoor environments:
  • Outdoor Scenarios: Community gates and residential area entrances, factory and industrial park access control, scenic spots and tourist attraction passages, bus stations, subway exits and outdoor pedestrian channels, construction site entrance management, stadiums and outdoor public passages, campus outdoor gates and peripheral access control.
  • Indoor Scenarios: Office buildings, shopping malls, supermarkets, hospitals, schools, cinemas, gyms, office parks and other places that need to manage pedestrian access.

Product Highlights

Our tripod turnstiles adhere to the concept of "safety, efficiency and intelligence,", and pay attention to every detail of product design and production. The outdoor version is specially treated with anti-corrosion and anti-aging, which can work stably in rain, snow, high temperature and other harsh environments; the indoor version is simple and elegant in appearance, which can be integrated with various architectural styles. At the same time, we provide customized services according to the specific needs of customers, such as adjusting the height of the turnstile, adding special verification methods, and matching different colors to meet the personalized needs of different customers.
Whether you need to manage the access of a community, a factory, a scenic spot or an office building, our tripod turnstiles can provide you with a reliable, efficient and cost-effective access control solution, helping you improve management efficiency and ensure the safety of the controlled area.
